GOV/MIL Projects – Military-Grade and CARC Coating Solutions

 Military equipment in demanding environments demands coatings that do more than resist corrosion. Defense assets must withstand chemical warfare agent exposure, harsh weather, abrasion, and long-term field deployment, and they must meet strict U.S. military specifications.


A Durable, Compliant Coating for Modern Military Finishing Operations

Winona Powder Coating applies a CARC-compliant powder system for defense OEMs, military depots, integrators, and government program suppliers. Our recommended system pairs Axalta MIL-DTL-53084B epoxy primer with a Sherwin-Williams POWDURA® MIL-PRF-32348 Type III CARC powder topcoat. We also offer powder coating, E-coating, and combined systems under one roof.

What Is MIL-PRF-32348 Type III CARC?

MIL-PRF-32348 governs powder coating systems for tactical and combat support equipment. Type III systems provide:

  • Chemical agent resistance
  • Low infrared reflectance
  • Superior weatherability
  • Corrosion protection
  • Low-gloss camouflage finishes

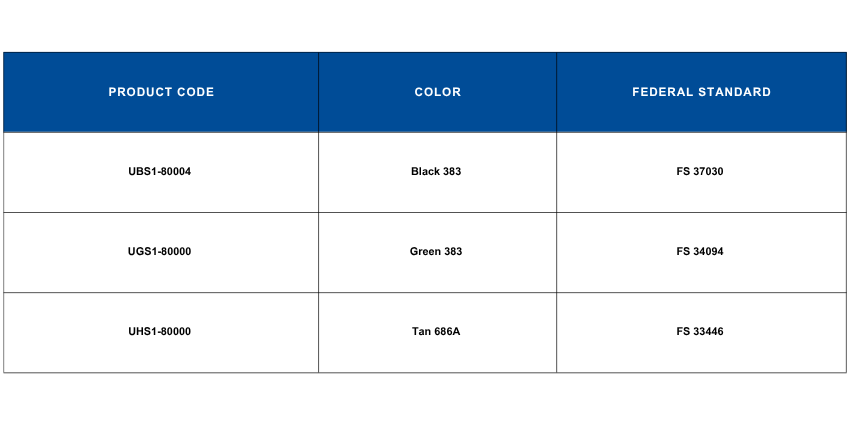

Approved Military CARC Colors and Federal Standard References

Product Code

Color

Federal Standard

UBS1-80004

Black 383

FS 37030

UGS1-80000

Green 383

FS 34094

UHS1-80000

Tan 686A

FS 33446

MIL-DTL-53084B Primer Compatibility

Axalta MIL-DTL-53084B epoxy primer provides excellent corrosion resistance, adhesion, and compatibility with military coating systems. When used beneath Sherwin-Williams POWDURA® CARC powder topcoat, it creates a durable finishing system suitable for defense applications.

Epoxy E-coat primers also offer uniform coverage on complex parts. If your program calls for E-coat beneath a powder topcoat, our team can review the requirements with you. Please confirm the approved primer for your specification before production.

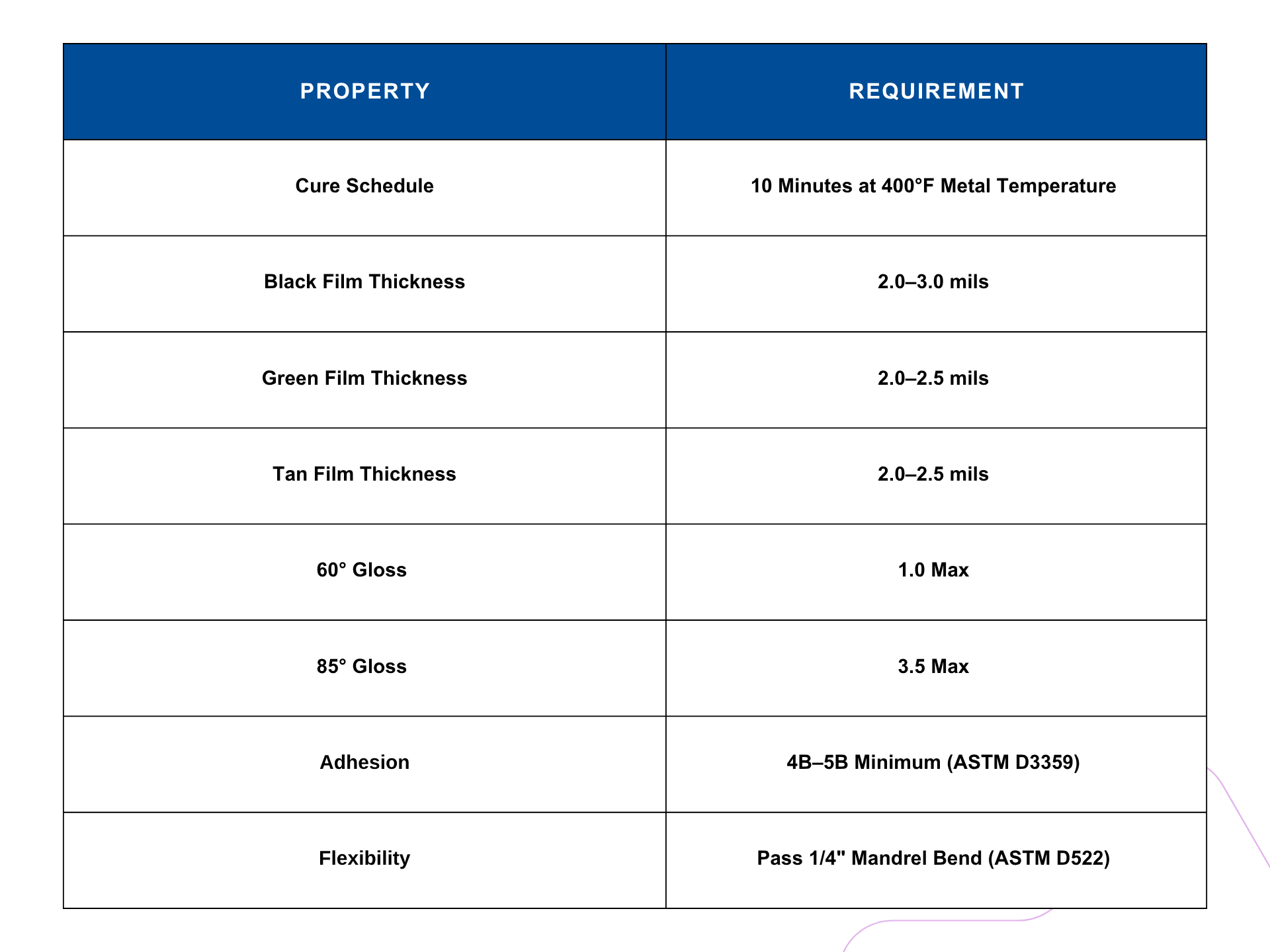

MIL-PRF-32348 Type III CARC Powder Coating Specifications

Property

Requirement

Cure Schedule

10 minutes at 400°F metal temperature

Black Film Thickness

2.0 to 3.0 mils

Green Film Thickness

2.0 to 2.5 mils

Tan Film Thickness

2.0 to 2.5 mils

60° Gloss

1.0 max

85° Gloss

3.5 max

Adhesion

4B to 5B minimum (ASTM D3359)

Flexibility

Pass 1/4" mandrel bend (ASTM D522)

Corrosion Protection and Chemical Agent Resistance

The qualified CARC powder system provides strong resistance to environmental exposure while maintaining tactical appearance requirements. Together, the epoxy primer and Type III topcoat create a layered defense against rust, weather, abrasion, and chemical exposure.

Surface Preparation Requirements

Proper substrate preparation is essential for specification-level performance. Cleaning, pretreatment, and surface condition all affect adhesion and corrosion resistance. Winona reviews your substrate, part geometry, and specification requirements before production so the finish performs as intended.

The Benefits of Powder CARC Coatings for Manufacturers and Contractors:

Powder CARC systems offer several advantages over conventional liquid systems:

  • Reduced VOC emissions
  • Improved transfer efficiency
  • Reduced waste generation
  • Consistent film build
  • Enhanced durability

Qualification Testing and Compliance Considerations

Customers should test the complete coating system on actual production components before full-scale implementation. Substrate, part geometry, and program requirements can all influence results, so real-world validation is a key step in managing qualification risk.

Winona supports quality-focused programs with ISO 9001:2015 certified processes, quick turnaround, packaging, and delivery support.

Validate Coating Performance on Your Own Components

Selecting a military coating system is ultimately about risk management. Whether you support a defense OEM, military depot, integrator, or government program, coating performance should be proven on the actual components and substrates used in production.

We encourage engineers, quality managers, and technical purchasing teams to submit sample parts for evaluation. We will apply our recommended system, Axalta MIL-DTL-53084B epoxy primer beneath Sherwin-Williams POWDURA® MIL-PRF-32348 Type III CARC powder topcoat, and return the coated samples for your own testing.

Your team can evaluate:

  • Adhesion performance
  • Film build consistency
  • Appearance and color compliance
  • Corrosion resistance
  • Chemical resistance
  • Manufacturing compatibility
  • Application requirements
  • Overall system suitability for your program

We will work with you to coat representative parts, document the process, and return them for independent testing and verification. Our goal is a coating solution that meets your specifications, performs in service, and helps your team deliver with confidence.


Custom Quote, Project Review, or Sample Run for Government and Military Contractors

Are you a government or military contractor looking to source an experienced, reliable metal finishing supplier? Do you need a powder coater that can meet strict specifications in MIL-spec parts or other tightly regulated applications?

Reach out to receive a custom quote for your project. Talk to Winona’s experts for a detailed project review. We can even provide free product samples or test runs to show you what Winona’s superior quality looks like.


NAICS: 332812 Metal Coating/Engraving including Powder Coating, 332813 Electroplating, Plating, Polishing, Anodizing, Coloring, 3447912214 Fluidized Sand Bed

CAGE: 76MT7

UEI: MGZ6A4LY6893

DUNS: 006040505
