ECoat

Etna Green Plant

The Etna Green location has two state-of-the-art powder coating lines with 5 stage washers, automatic and manual coating booths, and digitally controlled ovens, all of which are operated using the latest in industrial automation.

The E-Coat line can coat parts up to 102” long by 48” wide by 48” high. Each rack can coat up to 500 square feet of surface area and sustain weights of up to 2,200 lbs. 13 Stage Pretreat with Zinc Phosphate.

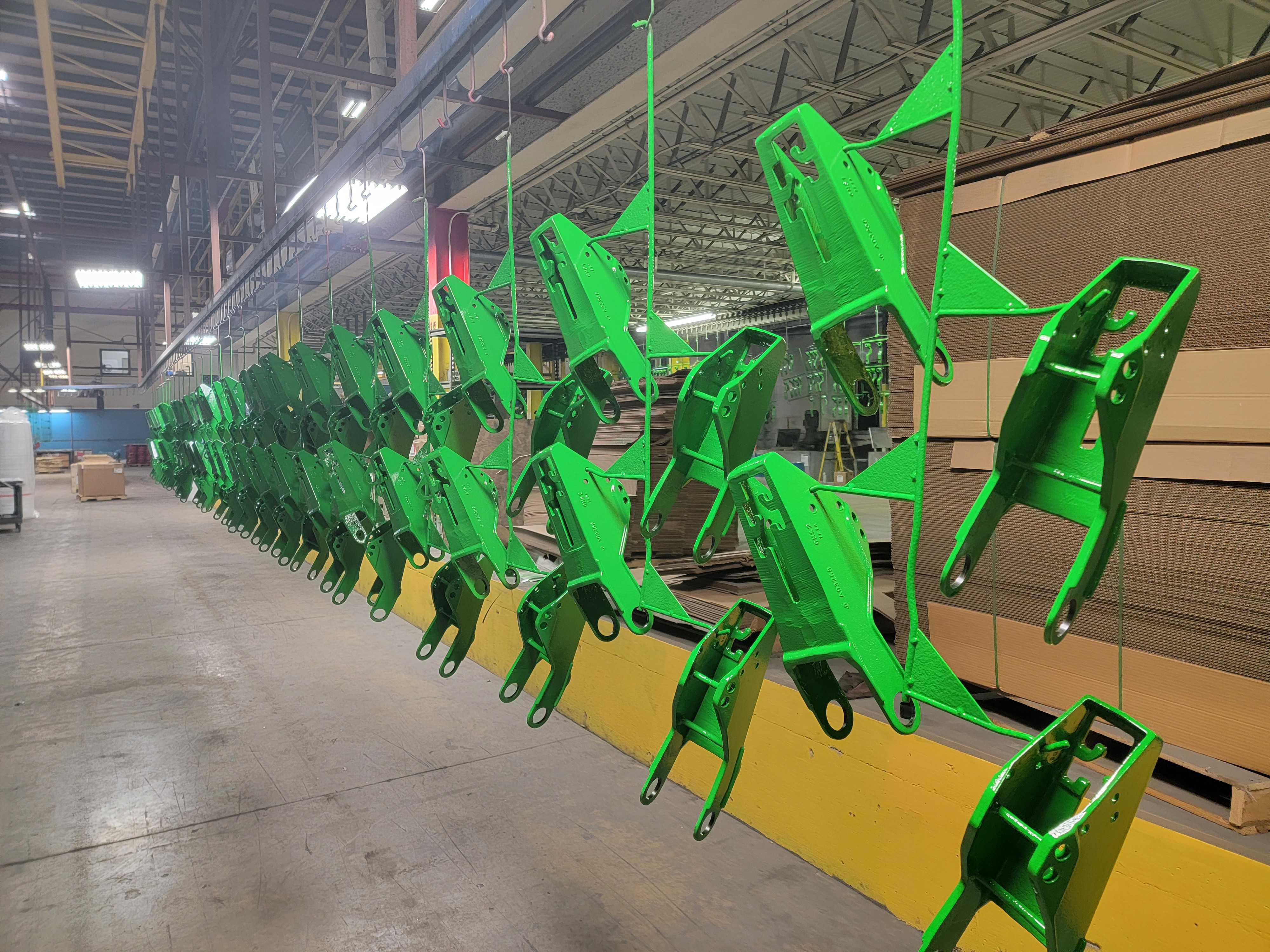

John Deere

Powder Line 1 can coat parts up to 72” high by 32” wide and up to 24’ in length. Line 1 has additional wash chemistry to achieve top performance with aluminum and galvanized parts. Powder Line 2 can coat parts up to 70” high by 38” wide by 24’ long. Line 2 was built to accommodate heavy parts and utilizes an I-Beam conveyor system. This line is exceptional at coating cast iron parts.

Large Part Batch line can powder coat parts up to 32’ long x 8’ wide x 8’ tall.

Fluidized Sand Bed stripper can accommodate parts up to 117” long x 56” wide by 61” tall. Total part weight per run is 5,748 lbs with an organic coating load of 62 – 174 lbs.

Packaging and assembly services are available.
